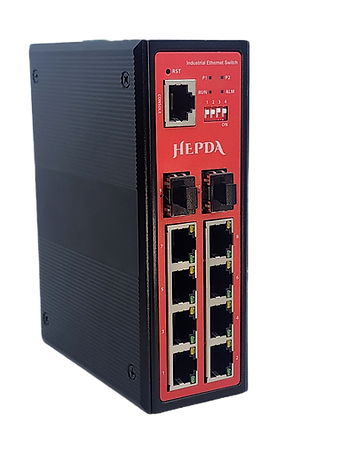

HUS-HDM-F82SPp
8-Port PoE+ Industrial Ethernet Switch
The Hepda HUS-HDM-F82SPp is a robust industrial unmanaged switch featuring 8 x 10/100Base-TX ports with PoE+ and 2 x 100Base-FX SFP uplinks. Built for harsh environments, this switch simplifies edge device deployment with power and data through a single cable—ideal for IP surveillance, automation, and field networking.
Main Features -
Fault Alarm (via electric relay)
-
The built-in fault alarm function sends out alert via the electric relay when there’s fault on the network switch.
-
It helps measure performance and quickly find out anomalies of the network switch.
​
​
​
​
​
​
​
​
​
​
​
​
​
​
​
​
​
​
Full loading Power Budget
-
The ET8222PpH-S-DR provides a quick, safe and cost-effective IEEE802.3af/at PoE network solution for various enterprises and infrastructures.
-
It supports up to 8-port 30-watt per port output, possessing a high loading power budget of up to 240 watts for different kinds of heavy PoE applications.
​
Dual Power Input for High Reliability
-
Automatically switch to secondary power input when primary power input fails, ensuring continuous operation without down time.
-
Redundant power supply reduces possibility of single-point-of-failure.
​
Environmentally Hardened Design
-
With a compact metal housing with an IP40 rating
-
Environmentally hardened for direct deployment in difficult unconditioned out-of-plant and roadside installations.
-
Extended ambient operating temperature range: -40 ÌŠ C to +75 ÌŠ C
Other Features -
-
8 10/100/1000Base-TX + 2 1000Base-SFP
-
Supports IEEE802.3az energy-saving technology
-
Supports Full/Half-duplex, Auto-negotiation, Auto MDI/MDIX
-
9K Bytes Jumbo Frame
-
Supports Broadcast Storm Control
-
Supports 802.3x Flow control
-
10/100/1000Mbps RJ45 Port
-
Supports external 1000Base-SFP
-
Supports IEEE 802.3at PoE+ (30W)
-
2M bits frame buffer memory
-
Supports Wall-mount and DIN-Rail installation
Frequently Asked Question (FAQ)
1. How much power can each port supply?
-
Each 10/100Base-TX port supports IEEE 802.3at PoE+ and can deliver up to 30W, totaling a power budget suitable for IP cameras, access points, and sensors.
2. Are the fiber uplink ports hot-swappable?
-
Yes, the 100Base-FX SFP uplink ports support hot-swappable SFP modules for long-distance fiber connectivity.
3. Does the switch require any configuration?
-
No configuration is required. It’s plug-and-play, optimized for quick deployment.
4. Can this switch be DIN-rail mounted?
-
Yes, the compact industrial casing supports DIN-rail and wall-mounting options, suitable for control panels and cabinets.
